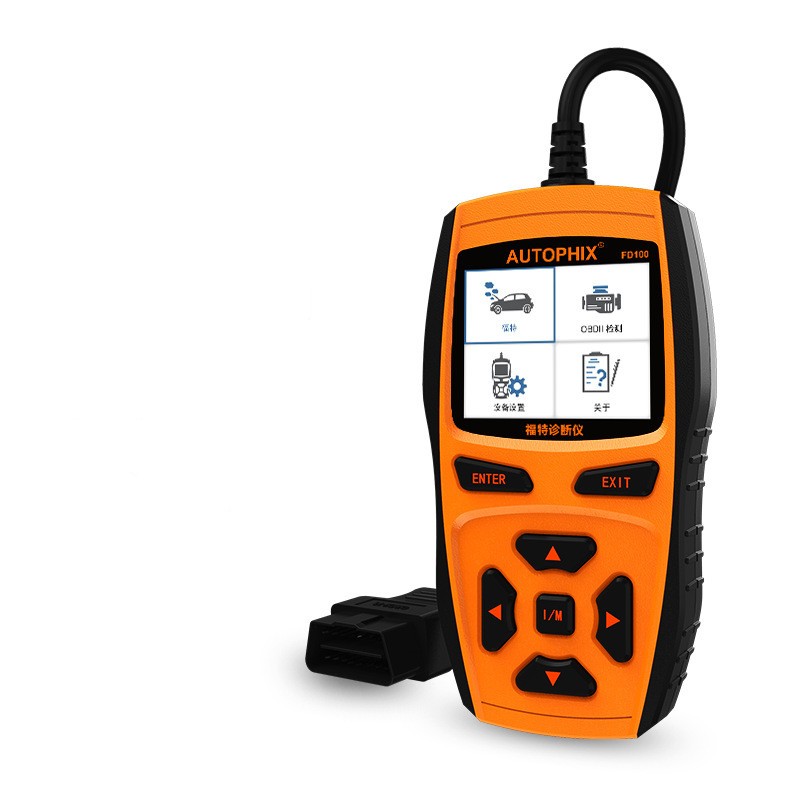

Automotive Full System Fault Diagnosis Detector

Comprehensive Vehicle Diagnostic Solution

The Automotive Full System Fault Diagnosis Detector is a cutting-edge tool designed to diagnose and troubleshoot faults across all major vehicle systems. Equipped with advanced technology and user-friendly features, this device is perfect for professional mechanics, automotive workshops, and DIY enthusiasts looking for a reliable and efficient way to identify and resolve vehicle issues.

Key Features of the Full System Fault Diagnosis Detector

1. Comprehensive System Coverage

• Engine Diagnostics: Monitor performance, identify malfunctions, and detect emissions-related issues.
• Transmission Diagnostics: Diagnose shifting problems and ensure smooth operation.
• ABS Diagnostics: Analyze and resolve issues with the anti-lock braking system.
• SRS Diagnostics: Identify and reset errors in the airbag system for enhanced safety.
• HVAC Diagnostics: Ensure proper functioning of heating, ventilation, and air conditioning systems.
• Body Control Systems: Diagnose electrical components such as windows, doors, and lighting.

2. Full OBD2 Support

• Read and clear diagnostic trouble codes (DTCs).
• Monitor real-time data with live data streaming.
• Perform freeze frame analysis for in-depth troubleshooting.
• Check emission readiness and O2 sensor performance.

3. Specialized Reset Functions

• Oil Reset: Clear maintenance reminders after oil changes.
• Battery Management System (BMS): Reset battery parameters after replacement.
• Brake Bleed: Assist with removing air from the brake system.
• DPF Regeneration: Perform diesel particulate filter cleaning.
• Steering Angle Reset (SAS): Calibrate the steering system for optimal control.

4. Wide Vehicle Compatibility

• Works with most OBD2-compliant vehicles, including American, European, and Asian brands.
• Supports CAN, ISO9141, KWP2000, J1850 PWM, and J1850 VPW protocols.
• Covers both gasoline and diesel vehicles, making it versatile for various automotive needs.

5. User-Friendly Interface

• Equipped with a large color display or touchscreen for clear visualization.
• Intuitive menu navigation makes it easy to access diagnostic functions.
• Multilingual support caters to users from different regions.

6. Durable and Portable Design

• Compact and lightweight, making it easy to carry and store.
• Built with durable materials to withstand tough workshop environments.

7. Free Software Updates

• Regular online updates ensure the device remains compatible with the latest vehicle models and diagnostic standards.

Benefits of the Fault Diagnosis Detector

1. Accurate and Reliable Diagnostics

Quickly identify and address issues across all major systems, ensuring your vehicle performs at its best.

2. Time and Cost Efficiency

Save money on expensive diagnostic services by performing advanced diagnostics in-house or at home.

3. Versatility

Suitable for use with personal vehicles, fleets, and workshops, this device meets the needs of various automotive scenarios.

4. Enhanced Vehicle Performance

Identify and resolve issues early to maintain optimal engine performance, fuel efficiency, and safety.

5. Easy to Use

Whether you’re a seasoned professional or a DIY enthusiast, the intuitive interface ensures a smooth and straightforward diagnostic process.

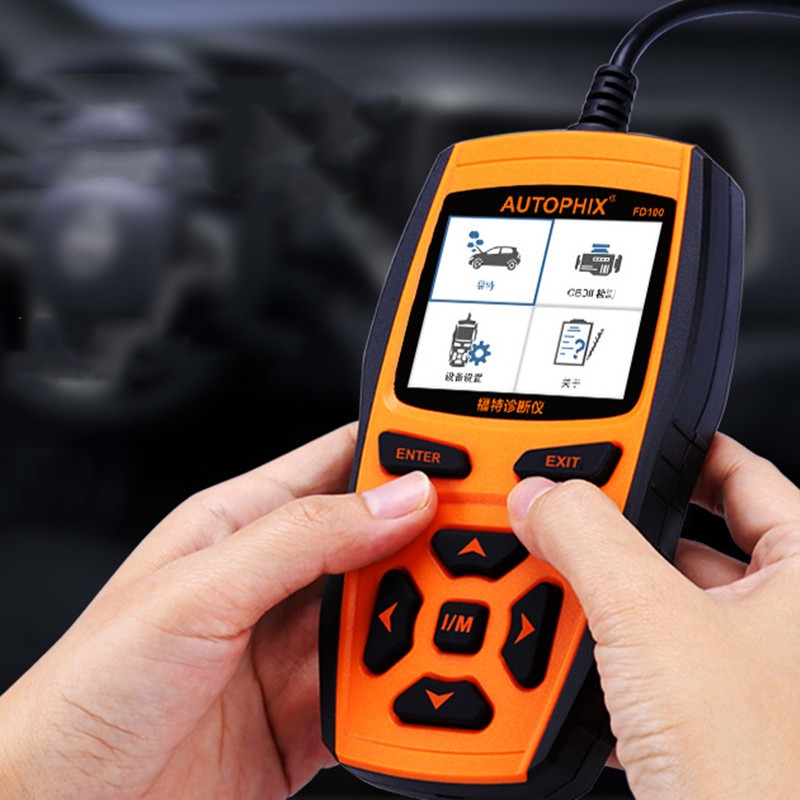

How to Use the Full System Fault Diagnosis Detector

1. Connect to the Vehicle Plug the device into the vehicle's OBD2 port, typically located under the dashboard.

2. Power On Turn on the vehicle's ignition and the diagnostic detector.

3. Select Diagnostic Mode Navigate through the menu to select the desired diagnostic function, such as reading fault codes, viewing live data, or performing a reset.

4. Analyze Results Use the detailed reports provided by the device to identify issues and determine appropriate repair actions.

5. Perform System Resets Reset maintenance reminders, clear fault codes, and calibrate systems as needed.

6. Update Software Connect the device to a computer or Wi-Fi to download the latest software updates, ensuring compatibility with new vehicle models.


Ideal For:

• Professional Mechanics: Enhance workshop efficiency with advanced diagnostics.
• DIY Enthusiasts: Empower yourself to troubleshoot and resolve vehicle issues at home.
• Fleet Managers: Monitor and maintain multiple vehicles for improved reliability and reduced downtime.
• Automotive Workshops: Offer comprehensive diagnostics for a wide range of customer vehicles.

Product Information：
Type: Auto Troubleshooter
Voltage: 12 (V)
Material: plastic
Color: orange

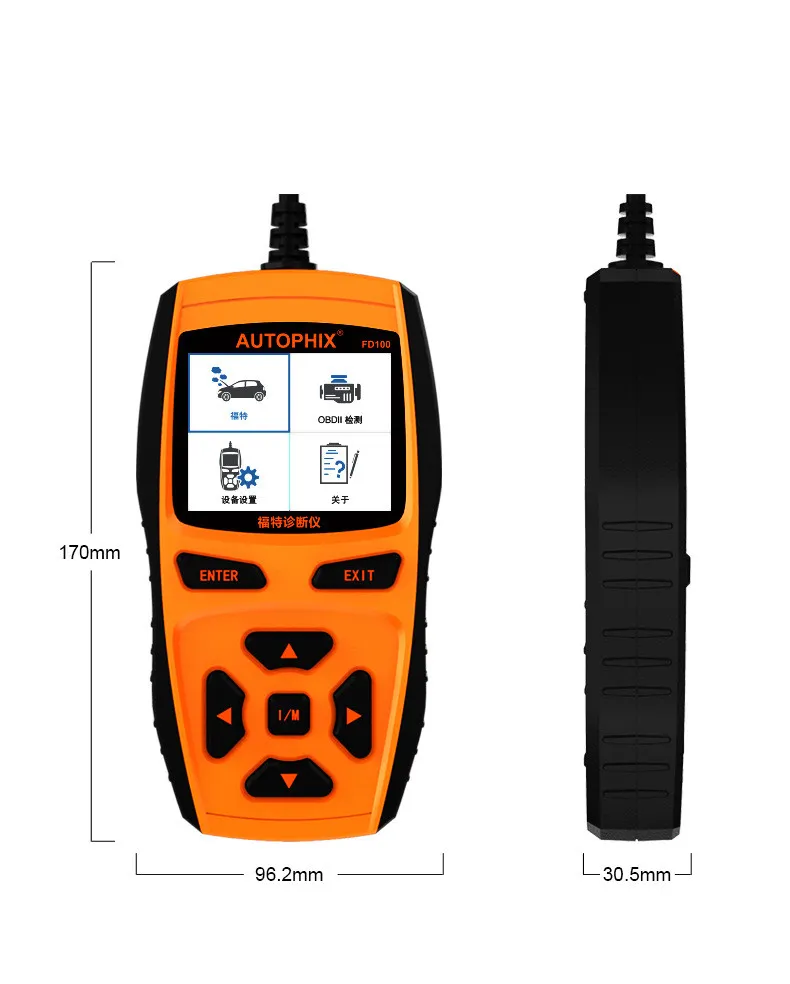

Size information:

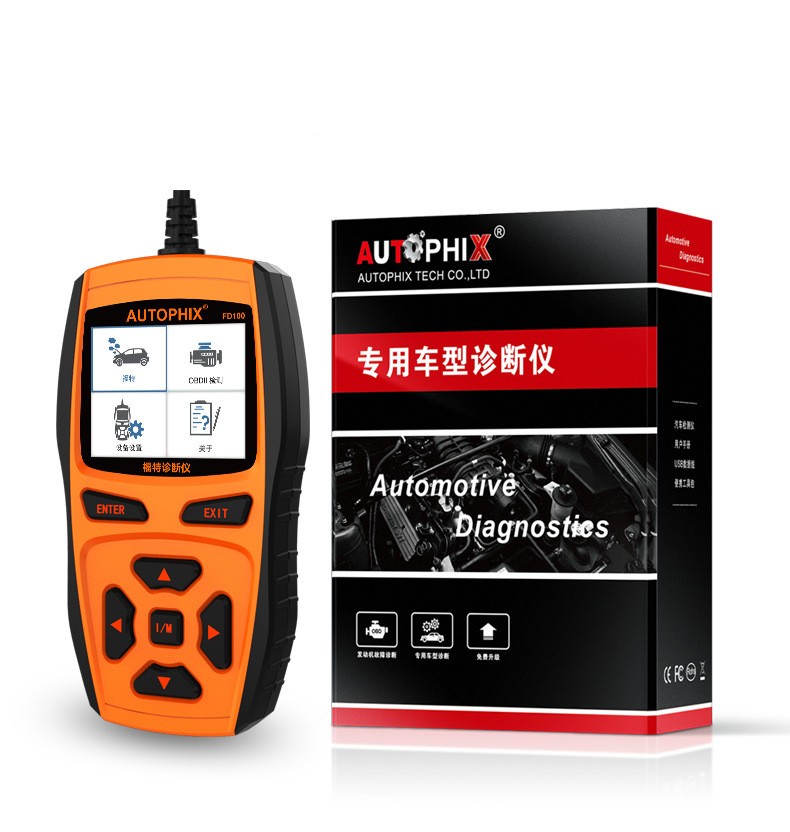

Package Contents：
Fault detector X1
