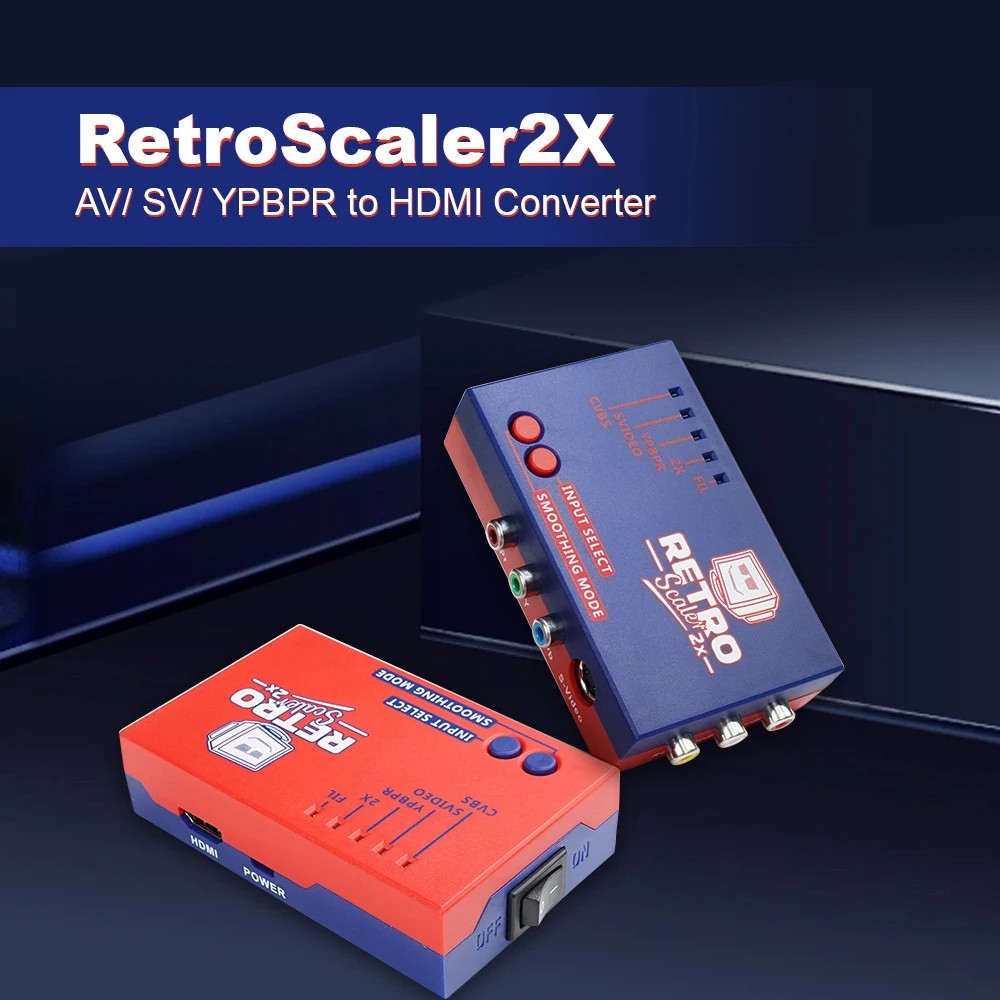

RetroScaler2x AV to HDMI-Compatible Converter and Line-Doubler for Retro Game Consoles

Attentions:

1. RetroScaler2X doesn't support all PAL-M consoles in Brazil and SFC PAL version console.

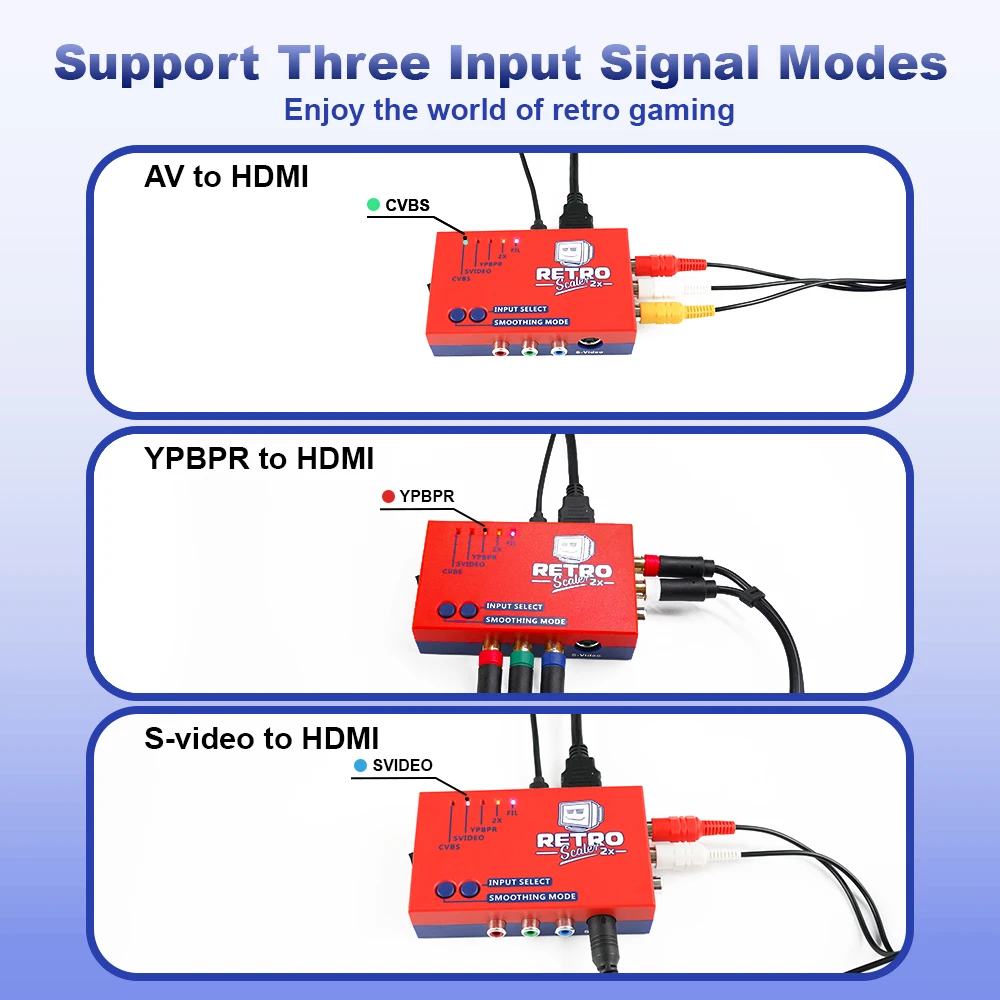

2. RetroScaler2X support component / AV/ SV signal input. Before purchasing, please confirm whether your game console can output these three video signals.

(Retroscaler2x doesn't support RGBS signal input, so don't use RGBS cable be used with it. )

3. When using Retroscaler2x, please use the signal cable to connect it to the game console and TV directly. Do not use other signal convertor with it.

4. When using RetroScaler2x, please do not connect multiple signals at the same time.

usage video:https://youtu.be/C4ecNqamDa8

5. If you have high requirements for game quality, you can consider OSSC.

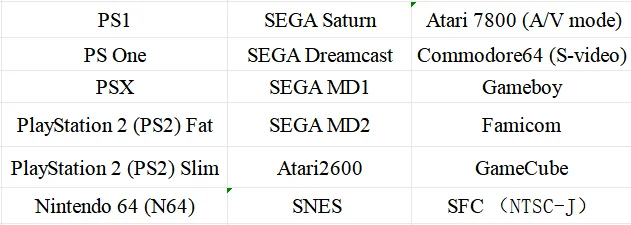

RetroScaler2x Supported Console (but not limited to):

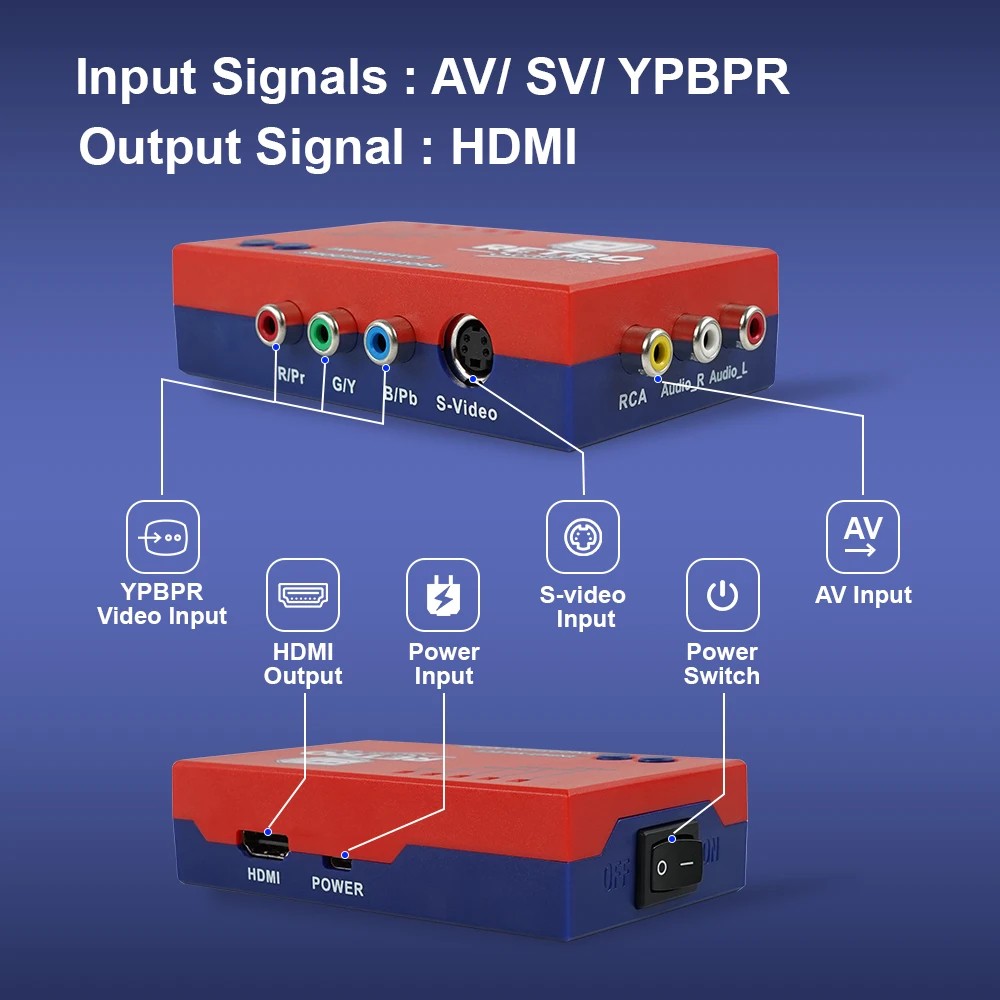

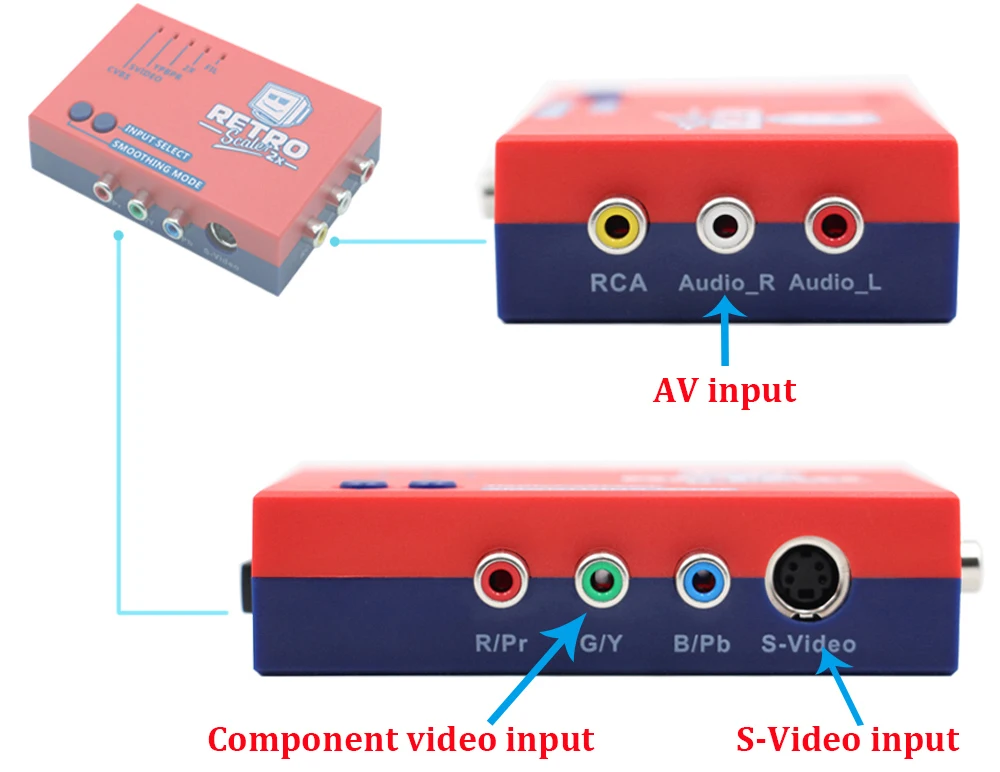

S-video input-- Connect an S-video (4 pins connector) source to this input, other sources are not support.

AV input-- Standard composite (RCA) connector. You can connect sources such as the Nintendo Super Famicom, Nintendo GameCube, N64 etc.

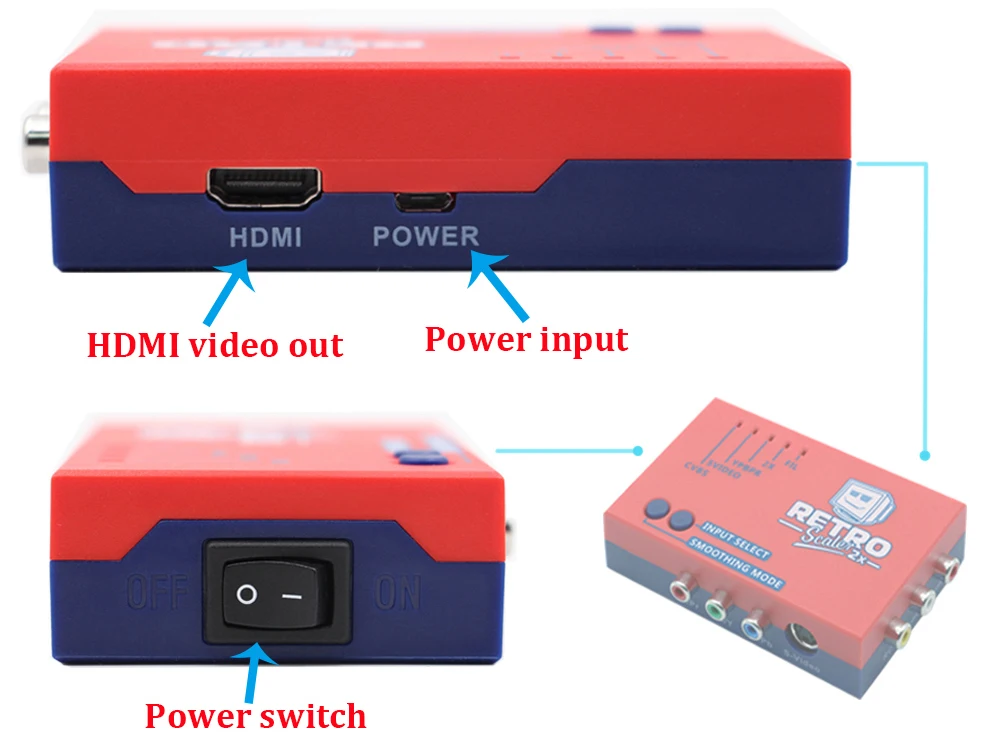

Power input-- Any decent quality Micro USB charger can be used to power the RetroScaler2x, as it’s a very efficient device. Your are even able to power mine via the USB ports of your TV!

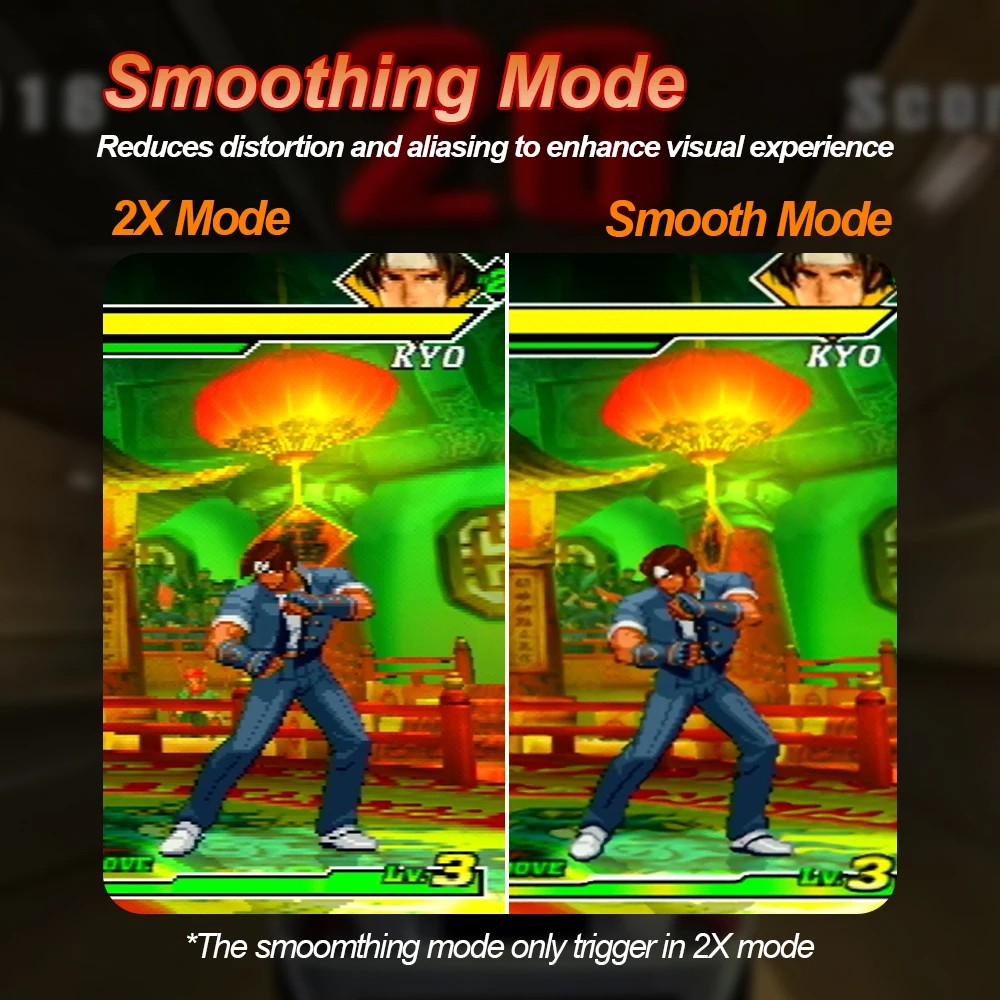

FIL (blue led lights on):This mode adds a filtering option to to minimize image aliasing for the 480p/576p output.

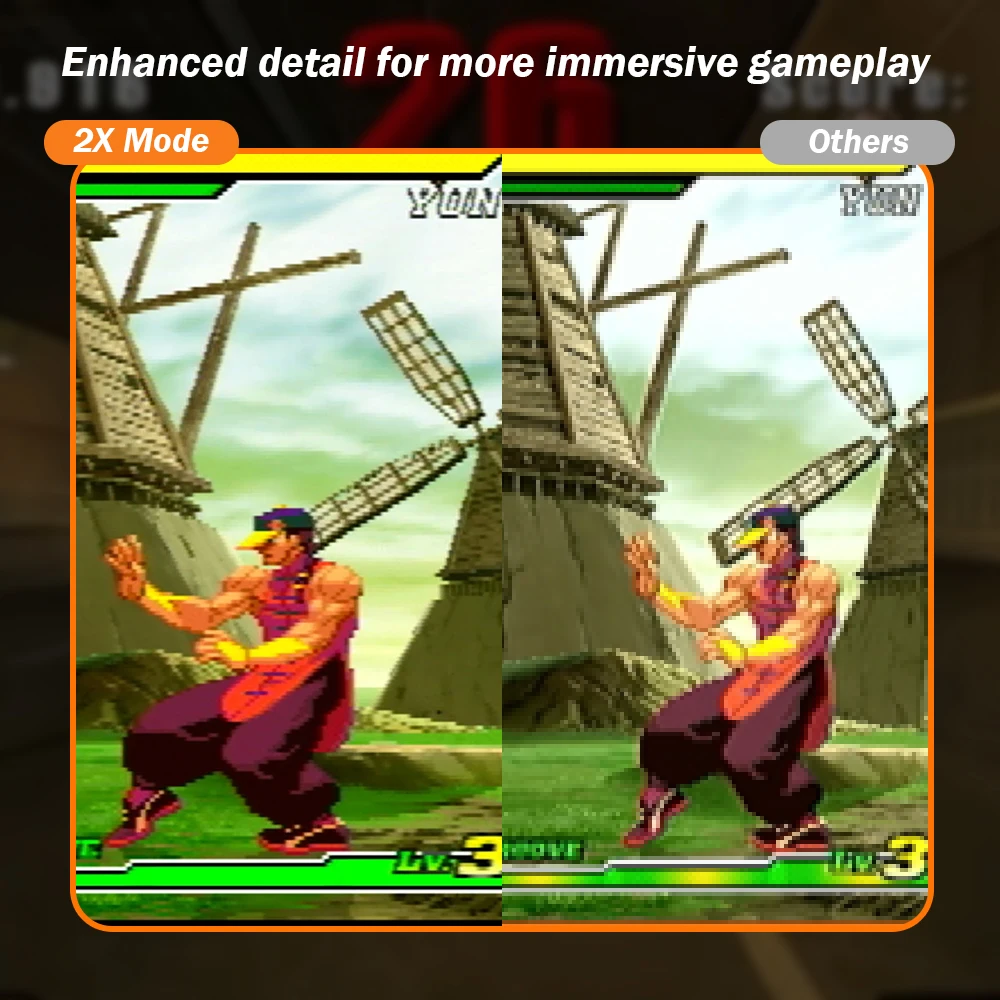

2x Mode (orange led light on ):This is the standard “LINEDOUBLE” mode that outputs 480p/576p. This is the mode that’s the system defaults to when powered on.

RetroScaler2x Features:

Signals / Resolutions:

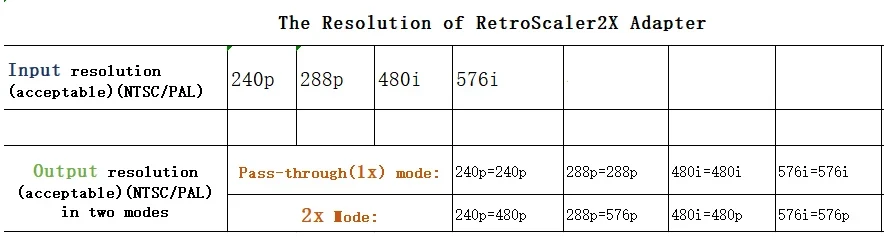

The RetroScaler2x can accept 240p/480i/288p/576i NTSC/PAL sources to converter to 480p/576p HDMI output (480p for NTSC, 576p for PAL). For example 240p signals are supported properly, allowing for a completely progressive linedouble to 480p. 480i signals are deinterlaced and doubled also to 480p. Keep in mind that the output resolution of this device only up to 480p/576p.

Zero Lag:

The RetroScaler2x is a zero lag device, proven using multiple measurements and different devices.

Region Compatibility:

Both NTSC and PAL signals are supported, but they are not converted to each other.  That means you can plug in whatever signal your target device is compatible with, but NTSC might not work on PAL HDMI devices and vice versa.

Filter Modes:

The “FIL” mode is completely preference-based, but the average retro-gamer prefers the FIL mode off for 2D games (SNES, Genesis, etc) and on for 3D games (N64, Saturn, etc). Also, the FIL mode might help reduce flicker with some 480i-only games.

Compatibility:

Another great feature of the RetroScaler2x is that it outputs a true 480p60 signal, making it compatible with every device I tested it with!  Compatibility is a big issue for retro-gamers, as modern displays aren’t used to the resolution or refresh rate of these older consoles.  This device is an excellent help for streamers who want the highest chance of compatibility.

Performance – Audio:

Audio performance on the RetroScaler2X is good although we would have to stop short of saying it was perfect. In general uses there are no issues with the audio digitization but on brassiere sounds like explosions the output may sound a little rougher than it did through the OSSC. This isn’t something you’re likely to even notice on a TVs speakers, though you might if you have an external amp or home theatre system. In that case of course, it’s usually perfectly easy to route audio around the RetroScaler2X anyway.

The Pass-through:

By putting the RetroScaler2X into pass-through mode, incoming composite, s-video or component signals are simply transparent and digitized into HDMI. Support for 240p is rare in the world of HDMI, but by adding a simple HDMI to VGA converter, you can convert the signal back to the analogue domain again. This makes the unit a perfect transcoder to go with 15 kHz displays like PVMs, or of course, the OSSC.

1. Why is there a sound delay?

This is related to the compatibility of the TV. Please try using another TV.

2. Why is there no screen display?

Please try setting the Retroscaler to 2X mode. And please also check whether the TV you are using can support the resolution output by RetroScaler2x.

Important safety information:

Please observe the following safety precautions when using your Retro Scaler2x.

Use the correct power supply-- the Retroscaler2x is powered by a regular 5 volt Micro USB port that can be powered by a normal power supply or powered by a device that has a USB port. Please make sure that the power supply you are using meets any of the above requirements. Never use a power supply that is not regulated to prevent damage to the equipment.

Turn off the power before connecting/disconnecting the device-- to prevent damage to the device ICs, always turn off the power before connecting the monitor or device.

Do not expose to moisture Droplets of moisture-- may contact the PCB and cause a short circuit. Never submerge the unit in water.

Keep away from fire or high heat sources–RetroScaler2X is not flammable but high temperatures, such as those from a fire or electric heater may melt the plastic casing.

Please supervise children-- Retro is not a toy and is not designed for use by children. Please supervise children if they use the Retro.

RetroTINK2X and OSSC

You can simply use the two devices in tandem, support both composite video and s-video and advanced features of ossc. Piggybacking the RetroScaler2x to the OSSC is very easy .All you need is a simple HDMI to VGA adapter. We will be carrying a tried and tested model in our store that fully supports 240p output and does not appear to crush blacks or over-saturate whites.

With a suitable adapter in hand, set the RetroScaler2X to transcode mode, connect the HDMI to VGA adapter to your RetroScaler2X, then connect the output of the adapter into your OSSC via the VGA port. Finally, switch the VGA port on the OSSC to 480p mode (Sampling opt->480p in sampler->DTV 480p).you have access to the OSSCs famous scanline engine and line multiplication modes with all your composite video and S-Video sources.

You can also access things like the advanced timing tweaker, allowing you to center the image using the backporch controls or apply a little faux zoom using the V.Active controls.

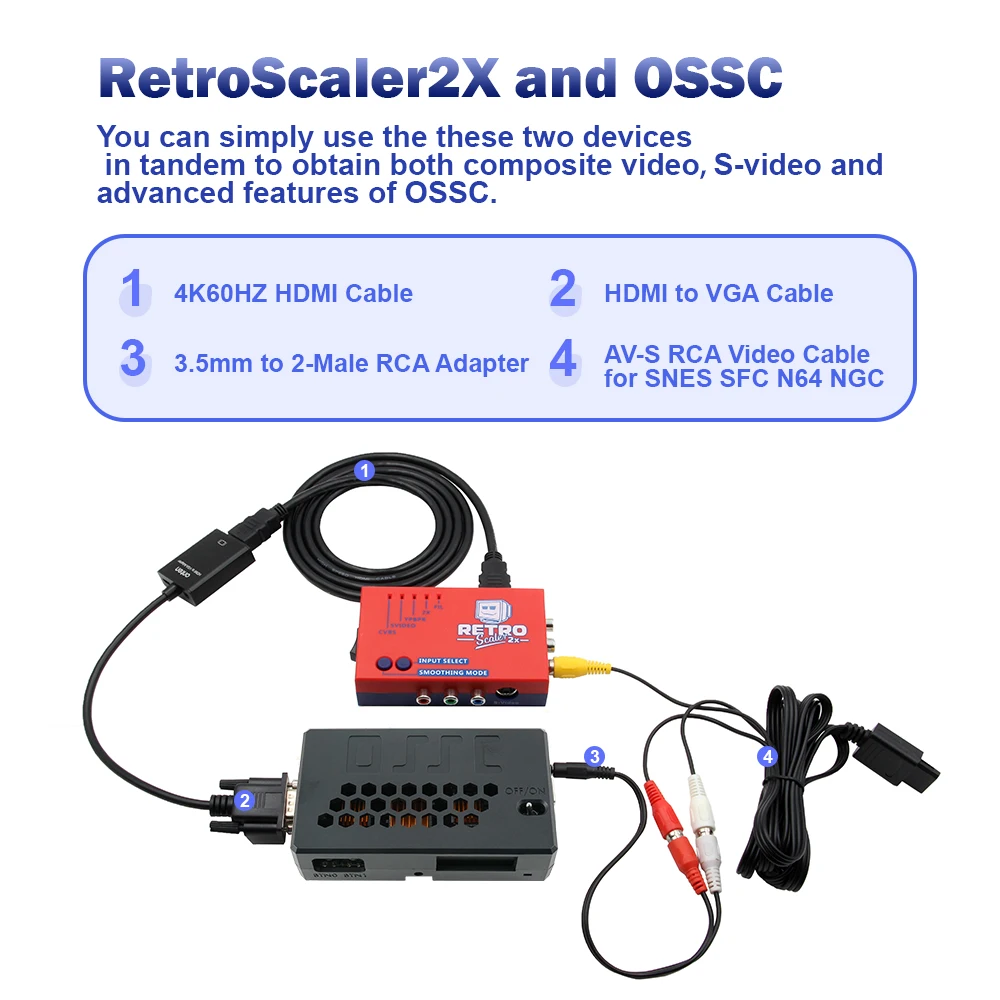

The following figure is the AV signal input connection diagram:

1.You need to prepare 3.5 stereo male head to lotus female head to connect AV Audio and Ossc Audio.The yellow lotus head is connected to the RCA of the Retroscaler2x.

2.The HDMI to VGA adapter is used to connect the HDMI interface of Retroscaler2x and the VGA interface of OSSC.

The RetroScaler2x AV to HDMI-Compatible Converter and Line-Doubler is the ultimate accessory for retro gaming enthusiasts in New Zealand who want to experience their favourite classic games on modern HD displays. Designed to work seamlessly with older game consoles like the PS2, N64, NES, Dreamcast, Saturn, and Sega Genesis (MD1 and MD2), this device converts analogue AV signals to HDMI output, allowing you to enjoy enhanced visuals and smoother gameplay on your HD TV or monitor.

Whether you’re reliving childhood memories or discovering the classics for the first time, the RetroScaler2x ensures that your retro games look and play better than ever before.

Key Features of the RetroScaler2x

1. AV to HDMI Conversion

Converts standard AV (composite) signals from classic gaming consoles to HDMI output, making it compatible with modern TVs, monitors, and projectors.

2. 2x Line-Doubling Technology

Enhances the resolution of retro games by doubling the lines of the original signal, improving image sharpness and clarity without introducing lag.

3. Supports Multiple Retro Consoles

Compatible with a wide range of retro gaming systems, including:

• PS2 (PlayStation 2)

• N64 (Nintendo 64)

• NES (Nintendo Entertainment System)

• Dreamcast

• Saturn

• MD1 and MD2 (Sega Genesis)


4. Plug-and-Play Design

No need for complicated setup or software installation—simply connect your console to the RetroScaler2x and plug the HDMI cable into your TV or monitor for instant gameplay.

5. Supports 480p and 720p Output

Offers HDMI output at 480p or 720p resolutions, ensuring a clear and vibrant picture that’s perfect for modern displays.

6. Compact and Portable

The RetroScaler2x is lightweight and compact, making it easy to carry and store when not in use, perfect for retro gaming on the go.

Benefits of Using the RetroScaler2x in New Zealand

• Enhanced Visuals: Enjoy your classic games with improved image quality on HD TVs and monitors.

• Compatibility with Old Consoles: Gives your retro game collection new life on modern equipment without sacrificing authenticity.

• Easy Setup: Plug-and-play functionality means you can start playing within minutes.

• Preserve Classic Games: Play your favourite retro games with better image quality than ever before, ensuring they remain enjoyable for years to come.

• Portable Convenience: Take it with you for gaming at friends’ houses or events.


How to Use the RetroScaler2x

1. Connect Your Console: Plug the AV (composite) cable from your retro console into the RetroScaler2x converter.

2. Connect to HDMI: Use an HDMI cable to connect the RetroScaler2x to your TV or monitor.

3. Set Your TV to HDMI: Select the HDMI input on your TV or monitor to begin gaming.

4. Enjoy Retro Games: Start playing your classic games with improved visuals and smooth performance.


Where to Buy the RetroScaler2x in New Zealand

• Online Retailers: Amazon NZ, eBay, and other global marketplaces offer easy access to this gaming accessory with international shipping options.

• Specialist Gaming Stores: Look for local New Zealand stores that specialize in retro gaming equipment or modern consoles.

• Electronics and Tech Retailers: Some electronics retailers may carry retro gaming accessories, including HDMI converters and scalers.


Conclusion: Upgrade Your Retro Gaming Experience with the RetroScaler2x

The RetroScaler2x AV to HDMI-Compatible Converter and Line-Doubler is the perfect solution for retro gamers in New Zealand looking to connect their old-school consoles to modern HD displays. With its easy setup, compatibility with a variety of systems, and ability to enhance the quality of retro games, the RetroScaler2x is a must-have for anyone passionate about preserving and enjoying classic gaming.
