Vehicle Battery Tester 12V/24V – High-Accuracy Diagnostic Tool for Battery Health Analysis

Introduction

The 12V/24V High-Accuracy Vehicle Battery Tester is a professional-grade diagnostic tool designed to analyze battery health, measure voltage, check internal resistance, and determine overall performance. Whether you're a car owner, mechanic, fleet operator, or roadside assistance provider, this high-precision battery analyzer ensures quick, accurate, and reliable results for cars, trucks, motorcycles, and commercial vehicles.

Equipped with advanced microprocessor technology, this tester provides real-time voltage readings, cold cranking amps (CCA) analysis, and battery life prediction. Ideal for New Zealand drivers, auto shops, and fleet managers, this tool helps prevent battery failures and optimize vehicle maintenance.

Key Features of the 12V/24V High-Accuracy Vehicle Battery Tester

1. Wide Compatibility – 12V & 24V Battery Support

• Works with all 12V and 24V lead-acid batteries, including:
  ✅ AGM (Absorbent Glass Mat) Batteries
  ✅ GEL Batteries
  ✅ Flooded Lead-Acid Batteries
  ✅ Deep-Cycle & Marine Batteries
• Ideal for cars, trucks, motorcycles, SUVs, RVs, and industrial machinery.

2. High-Precision Voltage & Battery Health Testing

• Accurately measures battery voltage and charge status.
• Detects overcharging or undercharging issues.
• Prevents vehicle breakdowns due to weak or faulty batteries.

3. Internal Resistance & Cold Cranking Amps (CCA) Analysis

• Measures internal resistance (mΩ) to assess battery performance.
• Cold Cranking Amps (CCA) test determines starting power in cold conditions.
• Helps identify battery aging, sulfation, and reduced efficiency.

4. Real-Time Battery Life Prediction

• Estimates remaining battery lifespan based on test results.
• Advises if a battery should be replaced or can still function optimally.

5. LCD Digital Display with Backlight for Easy Reading

• Clear, bright screen for viewing test results in any lighting condition.
• User-friendly interface with simple navigation.

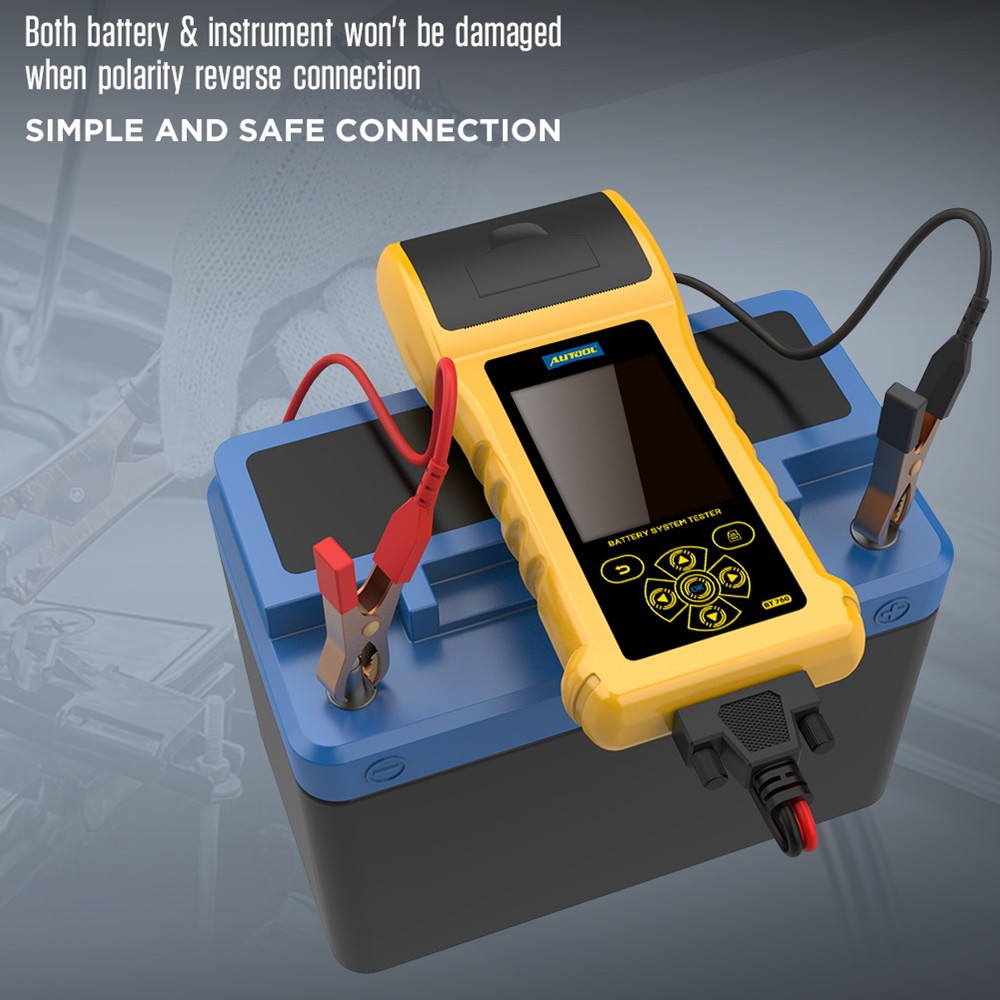

6. Safe & Reliable Testing with Reverse Polarity Protection

• Reverse polarity detection prevents incorrect connections.
• Short-circuit and overload protection ensure safety during testing.

7. Compact, Handheld & Portable Design

• Lightweight and easy to carry for mobile diagnostics.
• Durable construction for long-term use in workshops and garages.

8. Plug & Play – No External Power Needed

• Connects directly to the battery for instant readings.
• No need for additional power sources or complicated setup.

Product function description：

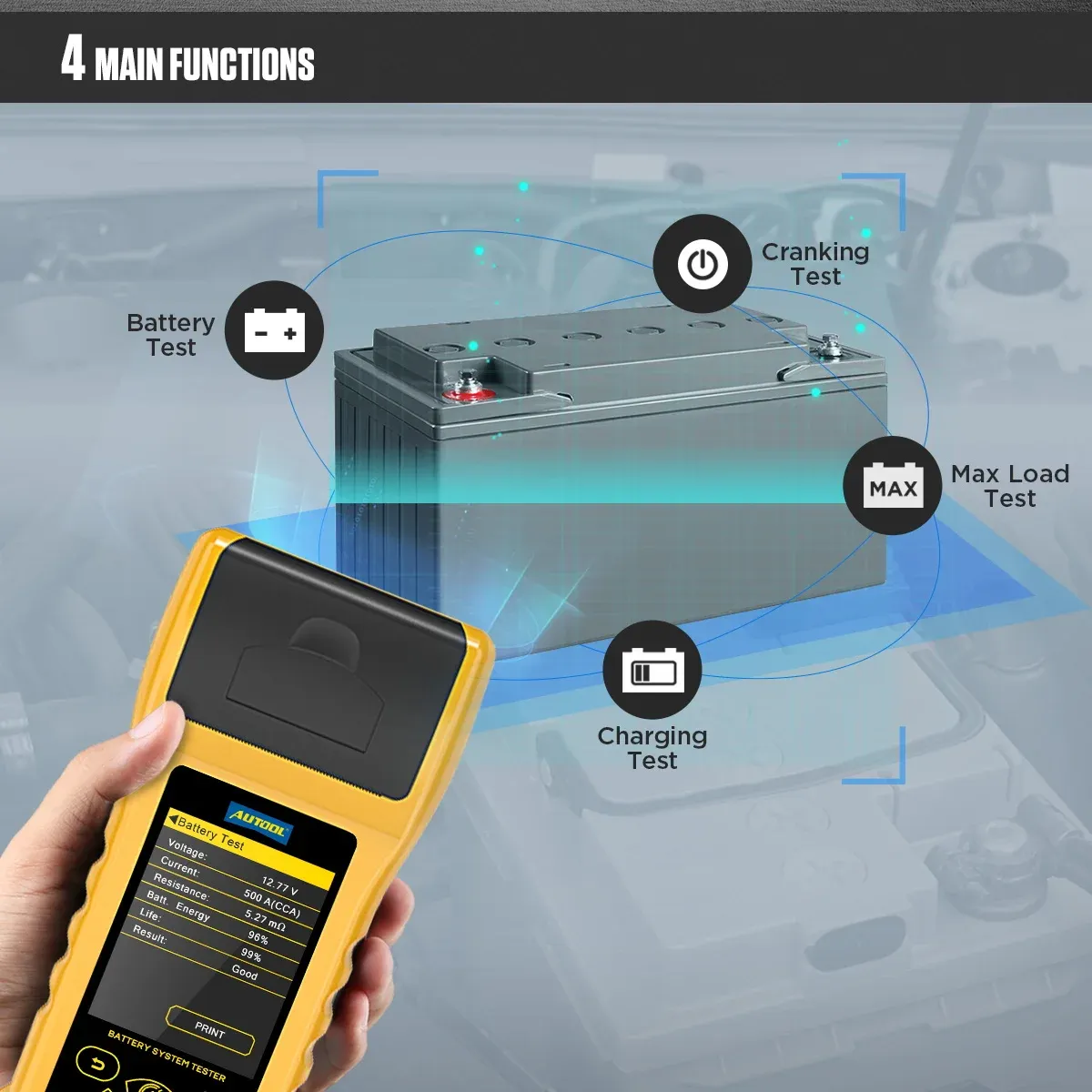

[Maximum charging, starting, battery and charging test]: With the Autool BT760 color screen car battery tester, you will be able to check the overall health of the battery and conduct a comprehensive charging test on the system. Identify the good condition or replacement of the battery, and use the recommended solution to quickly detect the common faults of the vehicle starting system and charging system.
[One-touch color screen and data printing]: With the built-in thermal printer, you can get the diagnosis receipt in a few seconds and share it with the customer. The customer only needs to press it once. With its color screen and unique graphic design, it will be easier to view data.
[Wide application and safety]: The test standards include most battery standards in the world, CCA IEC EN DIN JIS, etc. Professional tester with a very wide range and rated value of 100 to 3000 cca. Compatible with cars, motorcycles, trucks, recreational vehicles, mountain bikes, SUVs, boats, yachts, lawn mowers and even golf carts. With reverse polarity protection, the battery and equipment will not be damaged.

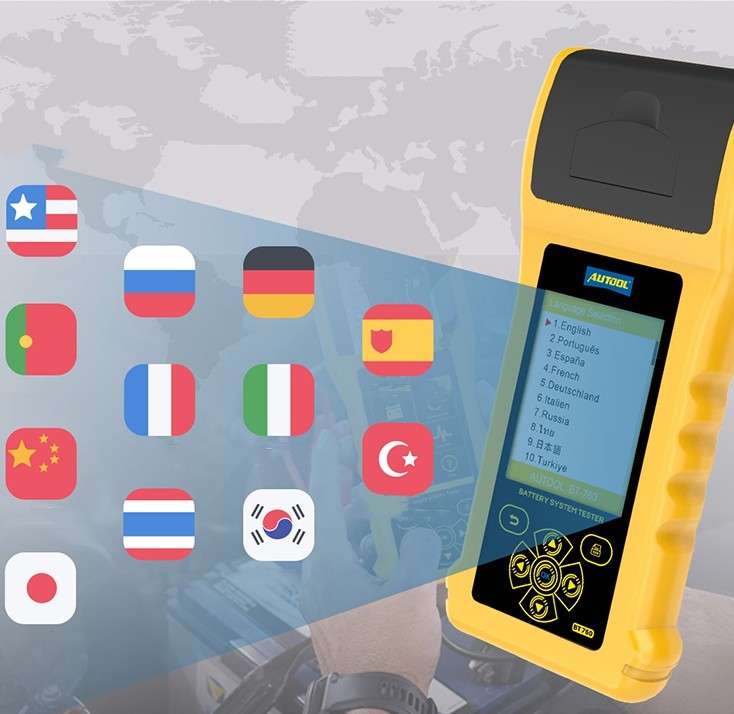

[Multilingual support]: 12 languages are available. English, Portuguese, Turkish, German, French, Russian, Chinese, Korean, Japanese, Polish, Italian and Thai are available.

Five functional steps of test operation:
1. Connect the 12V battery, connect the red clip to the positive pole, and connect the black clip to the negative pole.
2. Battery test: first select the battery type to be tested, then select the test standard and test range, and then get the results in a few seconds.
3. Start test: After selecting the start test function, start the engine according to the instructions. Test completed.
4. Load test: After entering the load test function, increase the speed to 2500 rpm for 5 seconds according to the prompt, and then press OK. Test completed.
5. Maximum load test: select the maximum load test function, open the car electrical appliance, start the car engine, and then click OK.

Product information:

Model number: BT-760
Color classification: BT-760 Chinese version BT-760 multi-language

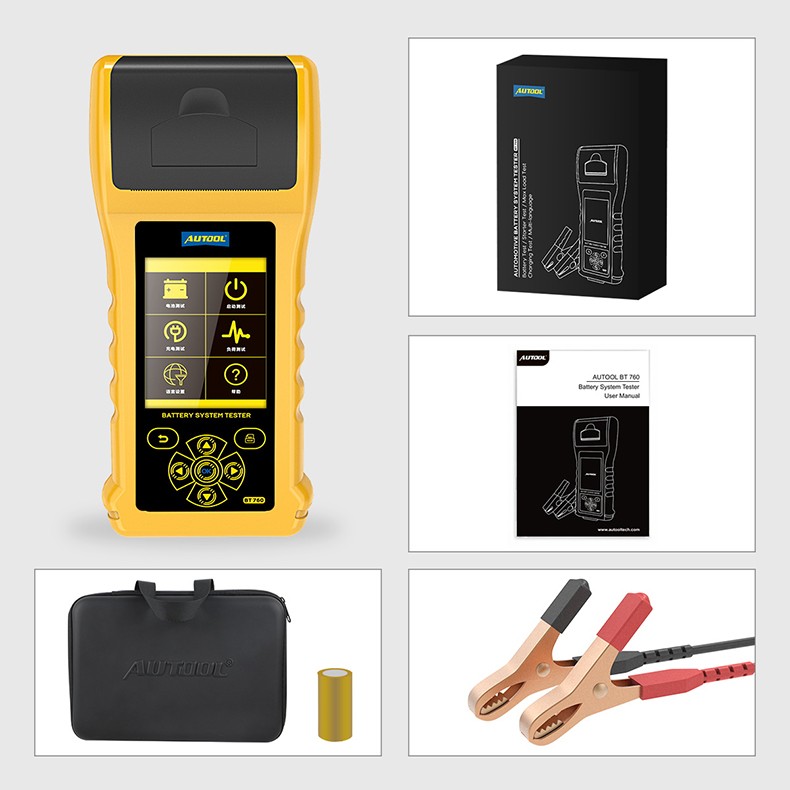

Packing list:

Color box * 1
Tester * 1
Clip * 1
Storage bag * 1
Instruction * 1
